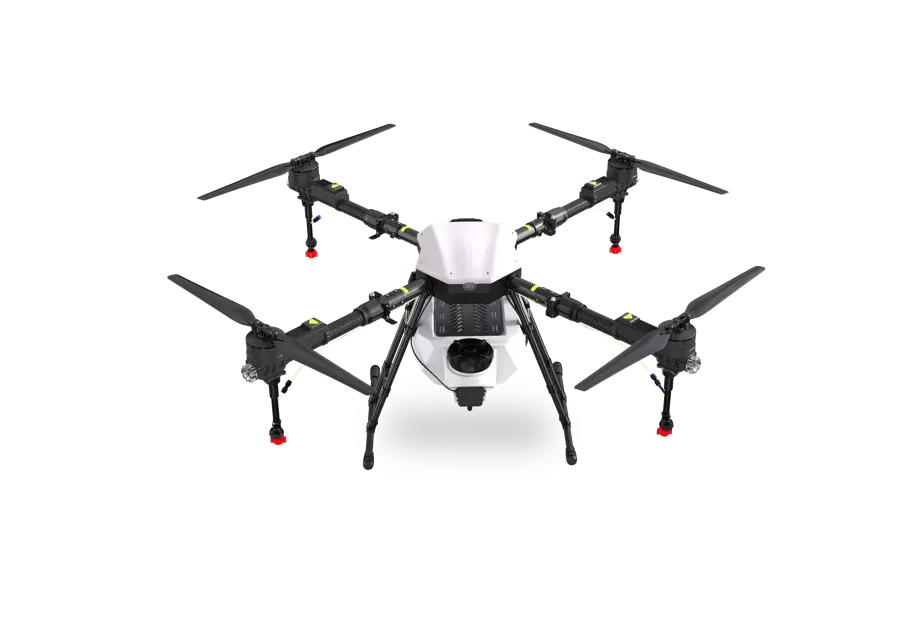

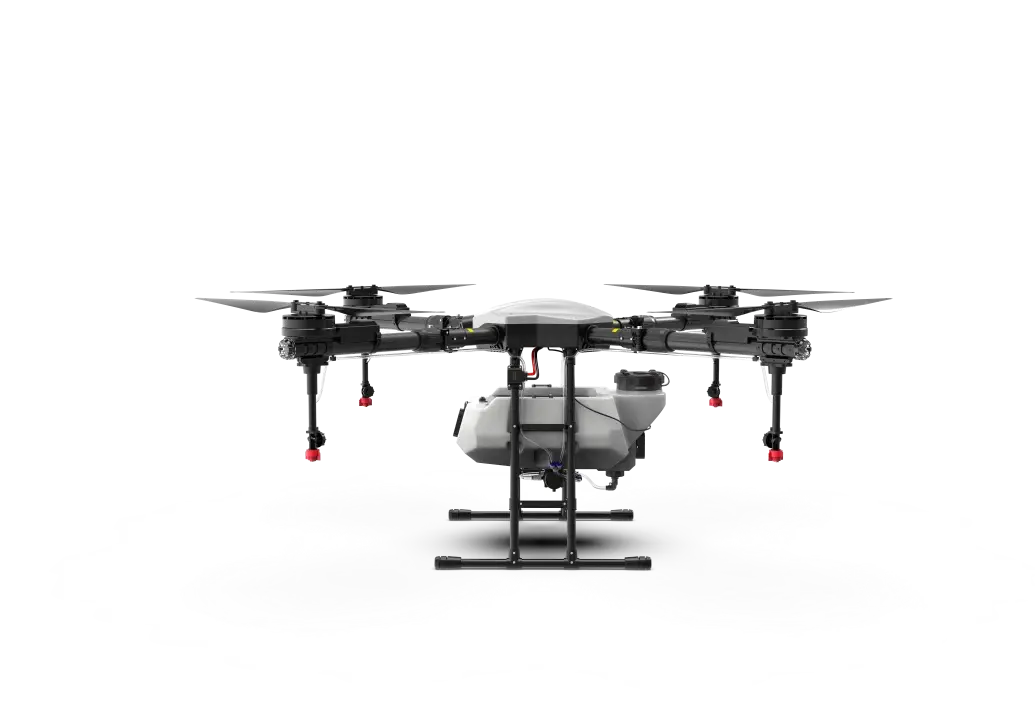

EV410 Agricultural Drones

The 10L payload model features an all-new, upgraded smart control system and reinforced quad-rotor arms to ensure safe, reliable flights. This proven design comes fully equipped with a high-efficiency pressure spraying system.1

  • Maximize Efficiency：Spray 4.94 acres every hour.

  • 10L Smart Tank：Optimized capacity for continuous flight.

  • 5m Spray Swath：Wider reach for faster field coverage.

  • Quadcopter Dynamics：Smooth, stable, and precise handling.

Smart Spraying

High-pressure spraying for deep penetration,Capable of both pesticide spraying and seeding or fertilizing.

Lateral Folding

Space-saving, compact design for effortless transport and rapid field deployment.

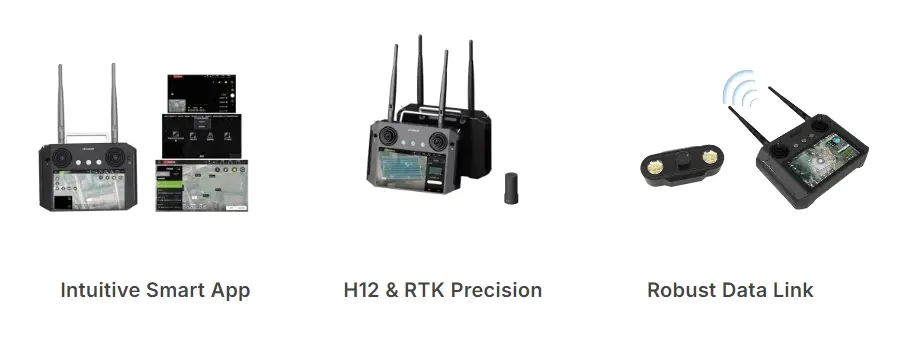

Ground Station Control

Intuitive remote piloting with live telemetry, keeping you in complete command from the ground.

IP65 Protection

Fully sealed core components. Highly resistant to dust, water, and harsh agricultural chemicals.

Precision GPS

Pinpoint accuracy for perfectly mapped flight routes and reliable navigation.

Radar Avoidance

Ensure safe operation with front and rear obstacle avoidance radars, and terrain-following radar

Spraying System

4-nozzle pressure system with adjustable flow and atomization. Includes highly durable, precision flat-fan nozzles as standard.

Flat-Fan Nozzles
Adjustable Droplet Control
High-Capacity Flow Pump

Max. Flow Rate

3 L/min

Droplet Size Range

60-400 μm

Spray Width

5 m

Operate Efficiency

2 ha/h

Grain Crops

Grain Crops

Widely used for cereals like rice, wheat, maize, and barley in Asia and Europe.

Commercial Crops

Commercial Crops

Including cotton, coffee, rubber, and soybeans in South America and Africa.

Fruit Trees

Fruit Trees

Such as apples, grapes, cherries, and citrus fruits in Europe, North America, and Oceania.

Advanced Core Technologies

Engineered for precision, heavy-duty reliability, and maximum operational efficiency in any agricultural environment.

Flight Control System

The brain of your operation. Our upgraded smart flight controller ensures ultra-stable navigation, precise route execution, and highly responsive handling. Designed specifically for agricultural mapping, it guarantees flawless automation even in complex terrains.

High-Performance Propulsion

Engineered for heavy payloads and continuous, grueling operation. These heavy-duty brushless motors deliver exceptional thrust, maximum energy efficiency, and fade-free reliability across thousands of flight hours.

HD FPV Camera & Dual LED Lighting

Maintain complete situational awareness around the clock. The high-definition First-Person View (FPV) camera provides crystal-clear, real-time telemetry, while ultra-bright dual LED searchlights enable safe, efficient, and precise spraying operations well into the night.

IP65 Industrial-Grade Protection

Built to withstand the harshest elements. The fully sealed, IP65-rated core offers ultimate protection against dust, water ingress, and corrosive liquid chemicals. When the job is done, the entire drone can be directly washed down, making maintenance incredibly simple.

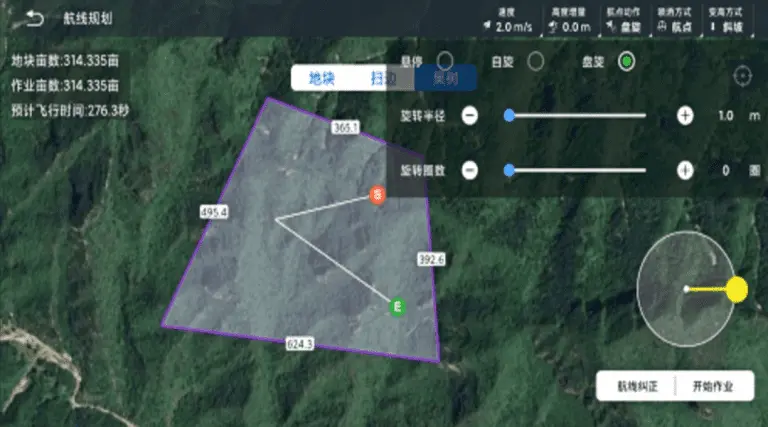

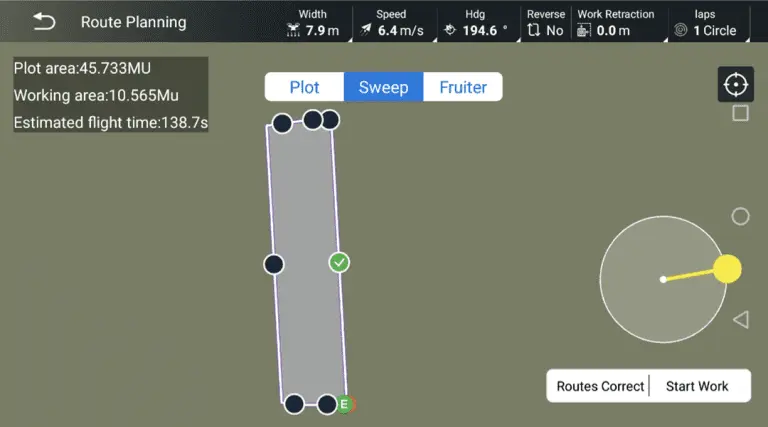

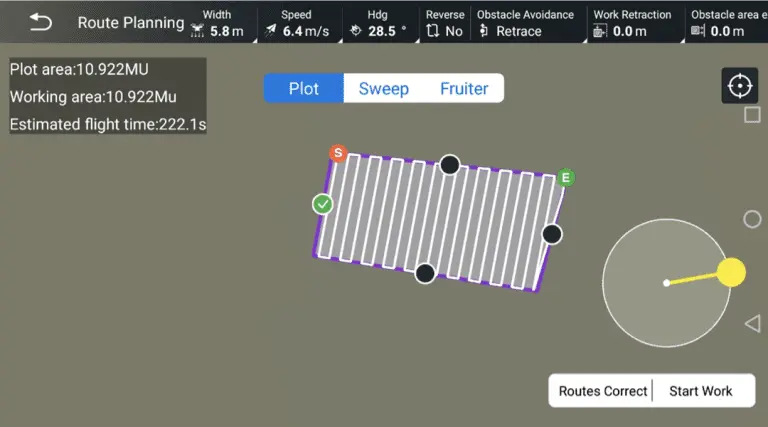

Route Planning

Drone route planning operates in three modes: Plot, Sweep, and Fruiter.

Technical Specifications

Type Quadcopter
Material Aviation-grade carbon fiber
Diagonal Wheelbase 1400 mm
Dimensions (Unfolded) 1100 × 1100 × 600 mm
Dimensions (Folded) 650 × 650 × 600 mm
Empty Weight (Without Battery) 12.5 kg
Max. Takeoff Weight 28 kg
Operating Speed 6 m/s
Hovering Time (No Payload) 20 min
Hovering Time (Full Payload) 10 min
Flight Radius s5km
Altitude Limit 4500m
Wind Resistance Level 7
Max. Payload (Tank Capacity) 10 L
Max. Spray Rate 3 L/min
Effective Spray Width 5 m
Operational Efficiency Approx. 5 acres/hour (2 hectares/hour)
Multi-Mission Payload Rack Quick-release and storage structure
Power System Polymer lithium battery
Power Source (Battery Capacity) 16,000 mAh
Operating Voltage 44.4 V
Engine & Frame Lifespan 5,000 hours, Frame: ≥8 years
Hovering & Flight Modes Omni-directional hovering; Manual, intelligent, and Automatic modes
Advanced Navigation Auto Altitude, Positition Hold, Return, AB Point Memory, Autonomous Planning
Night Flight Supported
Safety & Recording Dual-redundancy sensors; Electronic fencing; Flight data recorder

*The parameters above are theoretical values, based on tests conducted under ideal conditions. Actual operation may result in deviations due to varying circumstances, so please rely on real-world testing data for accuracy.

Technical Specifications

Packaging Specifications

  • Drone Color:
    (3 colors available)
  • Package Type:
    Export Standard Carton (Double-wall)
  • Packag Dimensions:
    670 × 670 × 630 mm
  • Volume (CBM):
    0.283 m³
  • Gross Weight:
    12.5 kg
  • What’s Included:
    1x Drone, 1x Tank, 2x Batteries, 1x Charger, Toolkit
